Model description page for Dodge Ram trucks
1500 series 02-08 and 2500/3500 series 03-09

and
Dakota 2005-2011



Sorry, all RAM Jimmi' Jammer kits have been discontinued. This page remains for reference.

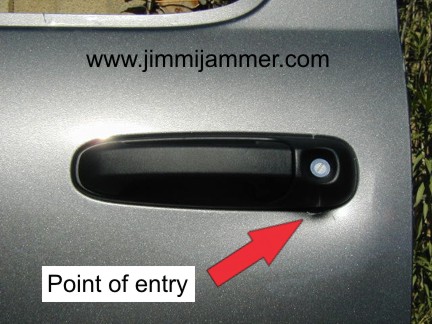

The photo to the right shows one popular method of breaking into your full size RAM truck.

The thief pry's into the door under the handle to get at the lock rods inside the door. Then, they force the rod to move and unlock the door!

It's fast, easy and quiet, making this a favorite among thieves. >

What's the solution?

Read on...


Ouch! See the hole right under the lock at the body and handle seam?

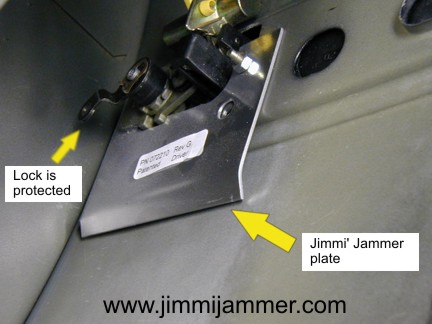

Inside the driver side front door with plate installed.

< The photo to the left shows a Jimmi' Jammer® plate mounted to the backside of the door handle, inside the door.

The plate surrounds the lock cylinder area, and the far end slides up and under the lock cylinder holder for maximum protection. The plate covers the seam between the handle and door metal, blocking access to the lock rods inside the door. (Lock rods are removed here for clarity.)



Why do they pry in near the lock?

On some vehicles, the factory alarm will not activate when entry is gained using this method. The alarm is triggered at the door latch, so the alarm brain thinks a key has been used to unlock the door because the rod moved at the latch!

With the Jimmi' Jammer® installed, the lock assembly is shielded from prying.

Want to see the installation process?
Visit our online installation tutorials.



What if my front passenger door doesn't have a lock on the outside?
If your RAM has a lock on the drivers door handle, but not on the passenger side, you still need a plate on the passenger side. We have had many callers tell us that a thief got in through the passenger door, even though there is no lock cylinder in the handle. This is possible because there are lock rods, such as the manual pull rod coming through the door cavity, and an experienced thief knows how to get at them. Put a plate on each door!



What about the rear doors on a four door truck?
On your full size RAM four door truck, we are now recommending the installation of the rear plates, PN 072220. When we first made a kit for the new RAM, we didn't think the rear doors were vulnerable, so we didn't make a kit for them. Before too long, we started receiving calls telling us that a thief had either attempted to get in, or did get in through the rear doors. The picture to the right shows a rear door plate installed, covering the door metal opening where the handle is inserted into the door.



Your REAR doors need protection too!

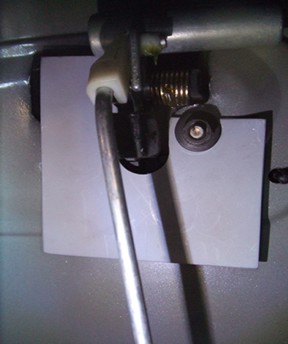

Inside the rear door, with plate installed.



See the chart farther down on this page to match your vehicle to the proper kit part number.

See our installation tutorials to see an installation with photos for this model.

Package Contents:


Kit PN 072205 ^

Kit PN 072210 ^

Kit PN 072220 ^

Each kit includes:

  • Two Jimmi' Jammer® plates
  • Complete instructions
  • Two window warning labels.





Back to model selection list

Note: Double check your truck to see if you have a lock cylinder on each front door, or just on the drivers door, then refer to the chart below as a double check before ordering. If your local dealer does not have this information, please call us and we will send it to them.

Vehicle Description
Buy Jimmi' Jammer® Part Number

Dodge Ram full size trucks,
1500 series, 2002-2008* with
locks on each front door.
*Does not fit 2009 - newer 1500 RAM.

072205 is discontinued.

Dodge Ram full size trucks,
2500, 3500 series
including Mega Cab models.
2003-2009 with locks on each front door.
Does not fit 2010 - newer 2500/3500 RAM

Also fits Dakota -2005-2011 w/ lock on each front door

072205





Dodge Ram full size trucks,
1500 series, 2002-2008* with
lock on drivers door only.
*Does not fit 2009 - newer 1500 series RAM.
072210 is discontinued.

Dodge Ram full size trucks,
2500, 3500 series
including Mega Cab models.
2003-2009 with lock on drivers door only.
Does not fit 2010 - newer 2500/3500 RAM.

Also fits Dakota -2005-2011 w/ lock on driver door only

072210

Rear Door kit, fits rear passenger doors of full size RAM and Dakota trucks.
1500 RAM - 2002-2008
2500/3500 RAM - 2003-2009
Dakota -2005-2011
072220 is discontinued.

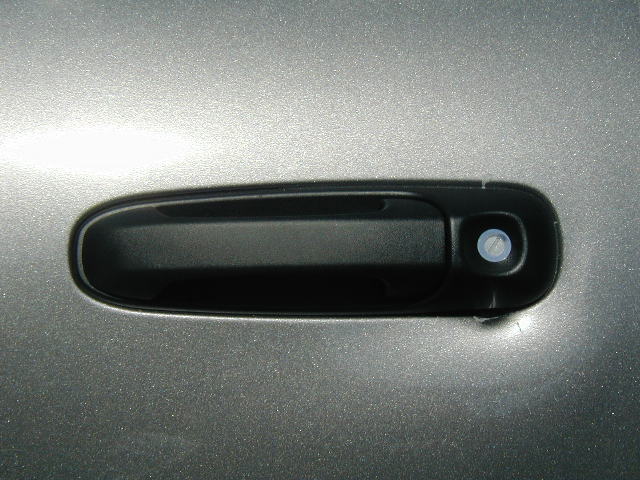

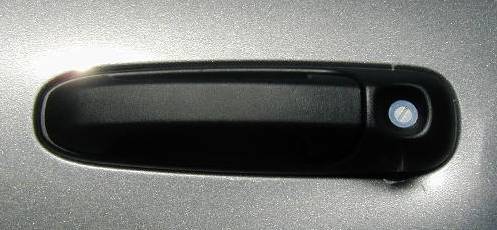

Fits vehicles with this handle style.

Note: A common question asks about the rear doors on a four door truck. We offer a kit for the rear doors, see the table above. All kits come with two plates. Put plates in doors even if there is no lock cylinder on that door.
