Welcome to the on-line Jimmi' Jammer® installation tutorial!

Our Products Where to Buy Model List

If you found this page searching for "Door Panel" information, you should take a moment to check out our Jimmi' Jammer product here.

This tutorial will show you how to install a Jimmi' Jammer® on the rear doors of a full size Chevy or GMC truck 1999 - 2006 and Chevy, Cadillac or GMC full size SUVs 2000 - 2006.

Special thanks to Jeff G. in Phoenix who helped us with this tutorial. Thanks Jeff!

Jimmi' Jammer® Part Number: 031505 (marked on back of package and each plate.)

Time Required: About 20 - 30 min.per door, depending on experience.

Tools Required:

Installation Procedure:
Note: We make every effort to ensure our tutorials are accurate, but the vehicle manufacturers sometimes make changes we are not aware of. If you find an error or omission in our tutorial, please email us. Photos are always welcomed and helpful.

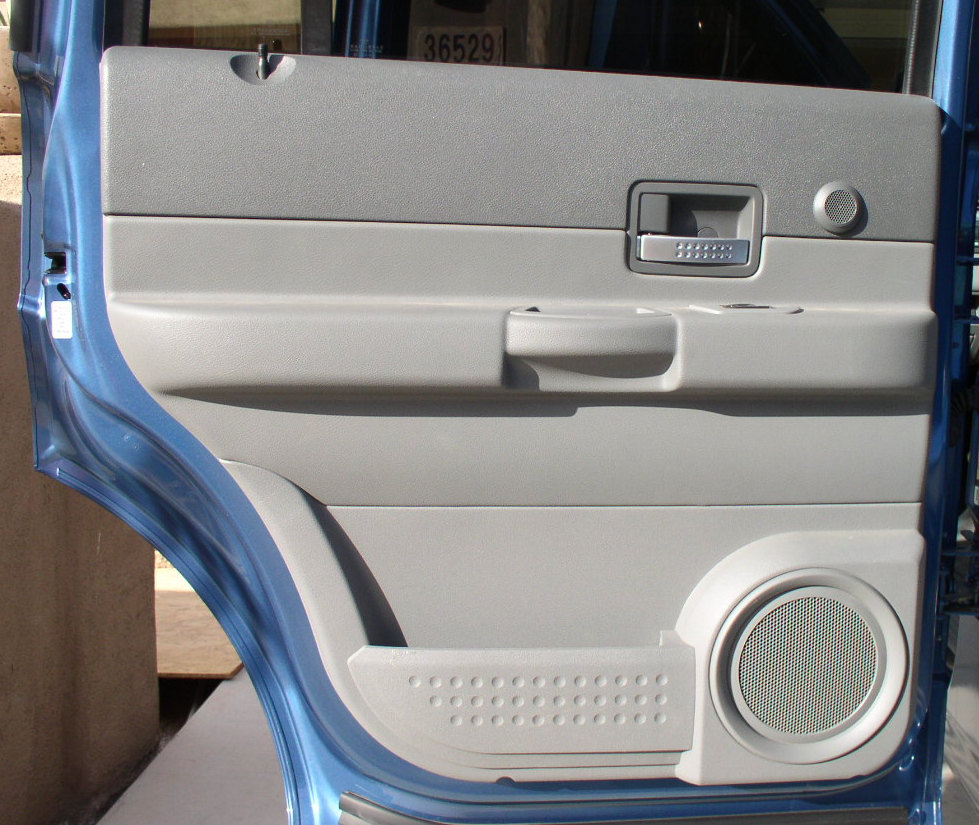

The first photo shows a typical rear door panel:

Note that once the next two steps (shown below) are finished, the panel will lift up and off the door frame. Note also that the panel will need to lift up over the lock rod sticking up through the panel.

It is sometimes easier to get the panel off with the window down, but you will need to roll the window up to install the plate.

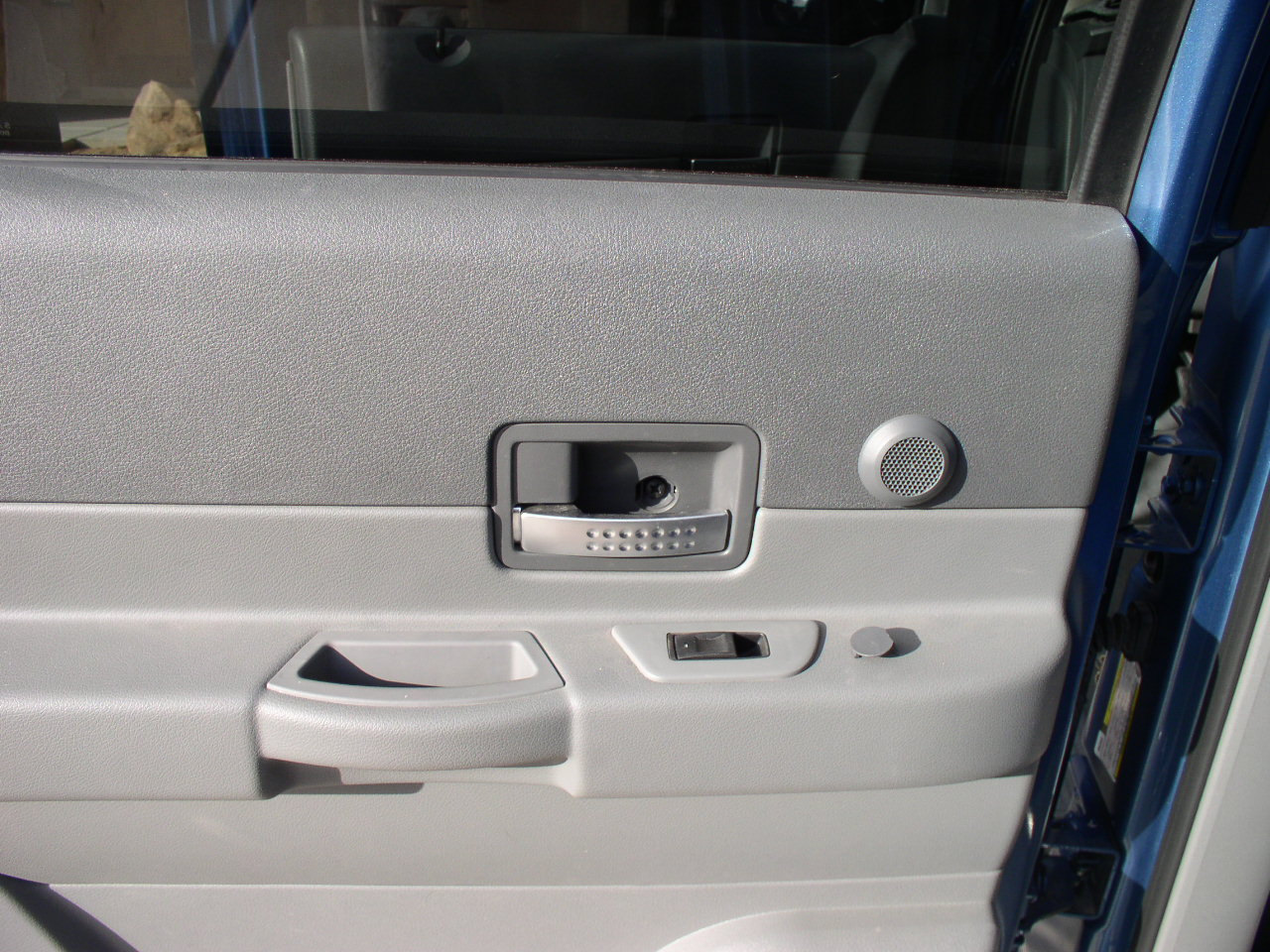

In the second photo, you can see a screw in the center of the door handle shroud. Remove this screw and the handle shroud.

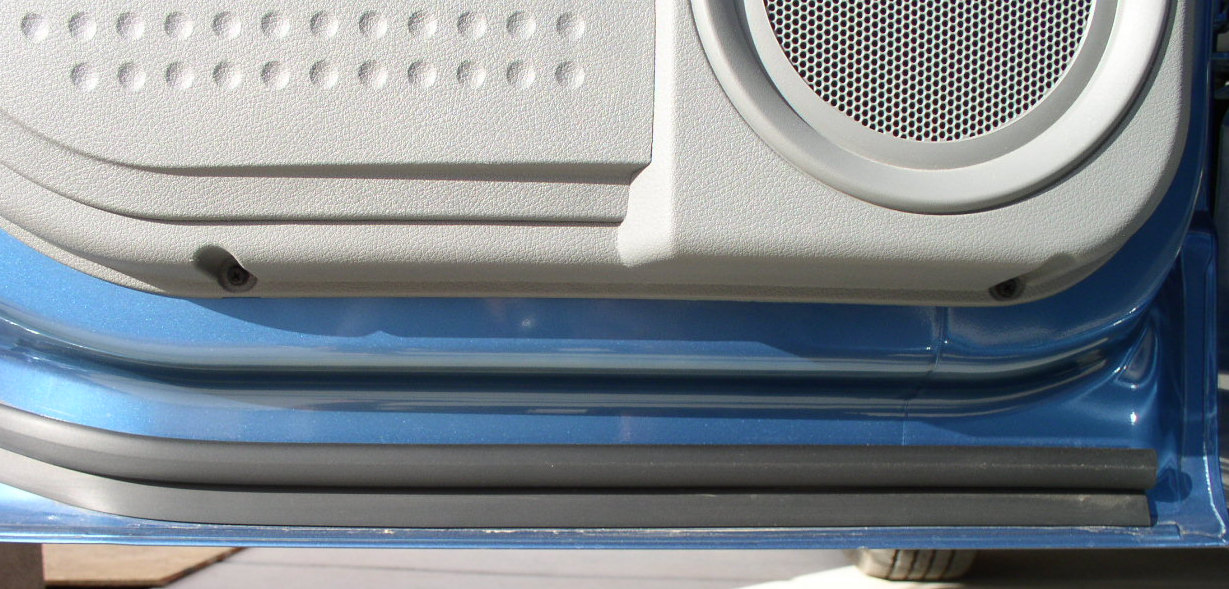

Seen here are two screws along the bottom edge of the door panel. Remove these screws.

You should now be able to carefully lift the panel up and away from the door. Watch for any wires that may be connected to a component on the door panel.

Install the plate on the handle as described in the instructions with the kit. Be sure to snug up the nuts on the handle, but do not over-tighten.

Put the door panel back on in reverse order.

This completes this installation.
